Application

Used for the digital photography of patient’s chest,abdomen,bone and soft tissue.

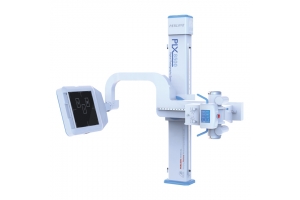

PLX8500E/F-500μ

High Frequency Digital Radiography System

500μs(0.0005s) Shortest exposure time in the world

High speed imaging to reduce artifacts

Low dose care the health of doctors and patients

High-power and large heat capacity to ensure perfect image(260KHZ,1000mA)

Integrated image chain design to reduce dose

Seamless integrate with PACS for information sharing and remote diagnosis

Remote system maintenance function

Self-diagnosis and fault code displaying for accurately locate problem and has self-protection function

2000 APR settings for quick positioning(maximum in the market)

Dual energy subtraction is optional

The whole body image stitching function (optional)

Both knees Weight bearing

High quality images help you make accurate diagnosis

Fast Positioning, high efficiency

Intelligent Moving system

Detector 90° rotation to meet a variety of special angle Radiography needs

180°large angle rotation of X-ray tube match with other imaging equipment for rapid imaging

Electrical cabinet integrated in machine—save space

Model	PLX8500C	PLX8500D
Power Output	85KW	100KW
Frequency	260khz	260khz
Tube Current	10-1000ma	10-1000ma
Tube Voltage	40-150kv	40-150kv
mAs	1-1250mAs	1-1250mAs
Exposure Time	0.005-10s	0.005-10s
Focus Size	0.6/1.2	0.6/1.2
Detector Type	Flat panel detector	Flat panel detector
Vision Size	17*17”	17*17”
Spatial Resolution Limit	3.7Lp/mm	3.7Lp/mm
Pixel Size	3K*3K	3K*3K
